An On-Board Charger (OBC) is a crucial component in electric
(EV) and plug-in hybrid vehicles (PHEVs). It converts AC power
from the grid into regulated DC power to charge the vehicle’s
battery safely and efficiently.
To meet the increasing demands for higher power density, efficiency, and reliability in compact designs, Premo provides a range of advanced electromagnetic components tailored for OBC applications.
PLC Transformers
Isolation Transformers
Current Sense
On-board chargers (OBC) play a crucial role in electric vehicle (EV) systems by managing the AC-to-DC power conversion needed to charge the battery efficiently and safely. At PREMO Group, we provide high-performance magnetic components tailored for each stage of the OBC system, ensuring optimal efficiency, safety, and electromagnetic compliance.
To the right is a breakdown of how PREMO components integrate into the main functional blocks of OBC systems:
Purpose: Suppresses electromagnetic interference (EMI) for safer, cleaner power
intake.
Components:
Common Mode Chokes: Reduce high-frequency noise
→ Example: CMCF0R9-16V (PREMO)
Differential Mode Chokes: Target line-to-line noise
→ Example: DMCMCF1R3-25H (PREMO)
Purpose: Enhances power quality by reducing harmonics and improving efficiency.
Components:
PFC Chokes: Vital for energy-efficient boost converters
→ Example: PFCA500-8H (PREMO)
The 4CMCN065R0-16H is a four-phase common mode choke designed for EMC noise filtering in on-board chargers and DC/DC converters of electric vehicle...
View full detailsThe 4CMCN065R0-32H is a four-phase common mode choke designed for EMC noise filtering in on-board chargers and DC/DC converters of electric vehicle...
View full detailsThe CMCF series includes common mode chokes designed for electric vehicle (EV) and hybrid electric vehicle (HEV) applications, specifically for on-...
View full detailsThe CMCF series includes common mode chokes designed for electric vehicle (EV) and hybrid electric vehicle (HEV) applications, specifically for on-...
View full detailsThe CMCN1 series is a high-performance common mode choke, utilizing a nanocrystalline core to optimize size for higher power density. These chokes ...
View full detailsPurpose:
Converts voltage levels while maintaining galvanic isolation.
Components:
High-Frequency Transformers for isolation and conversion
→ Example: BC3.5LFB1.4 (PREMO)
Resonant Inductors for LLC resonant converter efficiency
→ Example: RINDLS6R3-30T (PREMO)
Purpose:
Ensures clean, stable DC output by minimizing ripple and high-frequency
noise.
Components:
Output Chokes to filter and smooth the DC line
Purpose: Ensures clean,
stable DC output by minimizing ripple and high-frequency noise.
Components:
Output Chokes to filter and smooth the DC line

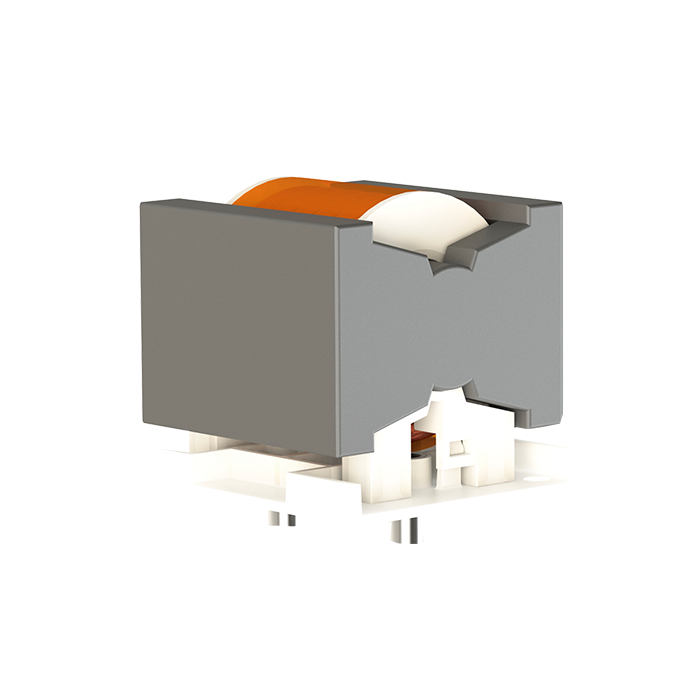

The RINDLS6.3-30T is a low-profile surface-mount inductor designed for efficient power conversion in automotive, industrial, and telecom applicatio...
View full detailsThe BC3.5LFB1.4 is a 3.5kW Full-Bridge LLC Resonant Transformer designed for on-board chargers (OBC) in electric and hybrid vehicles. It operates a...
View full detailsThe PFCA500-8H is a high-power PFC inductor designed for heavy-duty applications, including electric vehicle fast chargers and renewable energy sys...
View full detailsThe DMCMCF1R3-25H is a common mode choke designed for EV/PHV on-board battery chargers and DC/DC converters. It features 20µH inductance and suppor...
View full detailsThe CMCF series includes common mode chokes designed for electric vehicle (EV) and hybrid electric vehicle (HEV) applications, specifically for on-...
View full detailsPremo components empower OEMs and Tier 1 suppliers to achieve higher performance and reliability in On-Board Charger systems, ensuring efficient and sustainable EV charging solutions.
