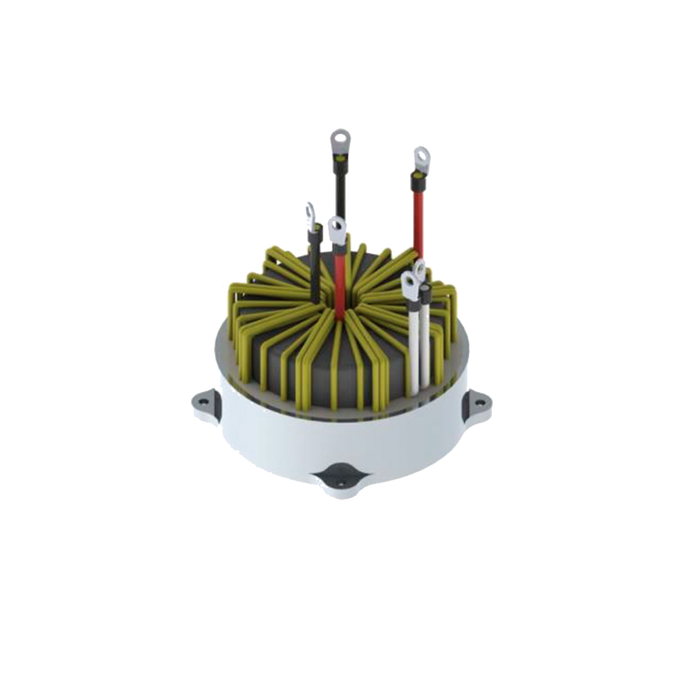

The 3DP-11KWHVHV-002 is a Full Bridge LLC Transformer with 150µH inductance combined with a 25µH resonant choke, specifically designed for high-efficiency On-Board Chargers (OBC) and DC/DC converters in electric and hybrid vehicles. This transformer operates with input voltages ranging from 580Vdc to 750Vdc and outputs between 220Vdc and 500Vdc at a current of 36Arms. It supports frequencies up to 300kHz and delivers power up to 11kW (extendable to 12kW with additional cooling measures). This compact, integrated solution optimizes power density, reducing space and enhancing thermal management for high-performance e-mobility applications
